M-Mark

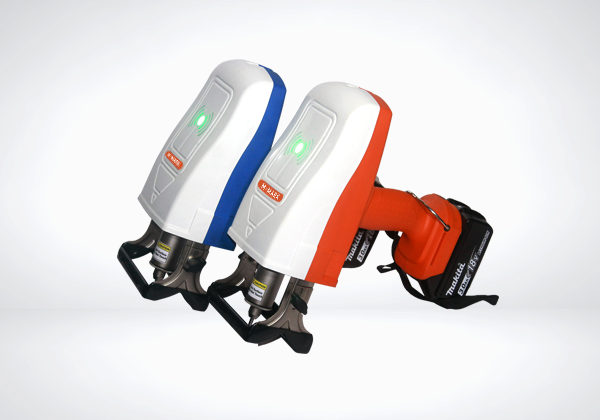

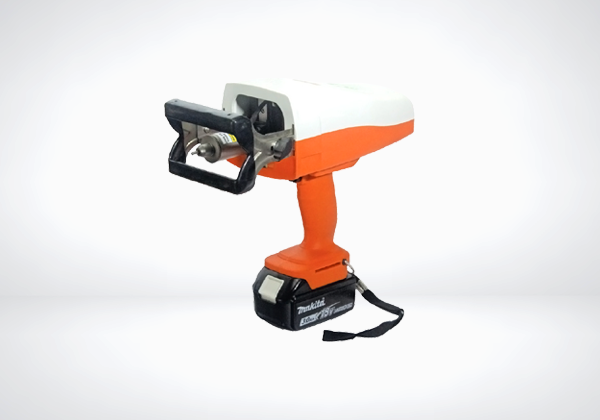

Portable Dot Peen Marking MachinesBattery-type wireless Portable Dot peen marking machine This is a compact battery-type wireless portable dot peen marking machine that allows marking process with one hand, so it is useful for marking on heavy objects or in the outside working yard.
Features
Compact cordless portable dot peen marking machine- Lightweight 2.4kg (M-Mark53) - Compatible Li-ion battery (Makita 18V) - Wi-Fi Hotspot connection

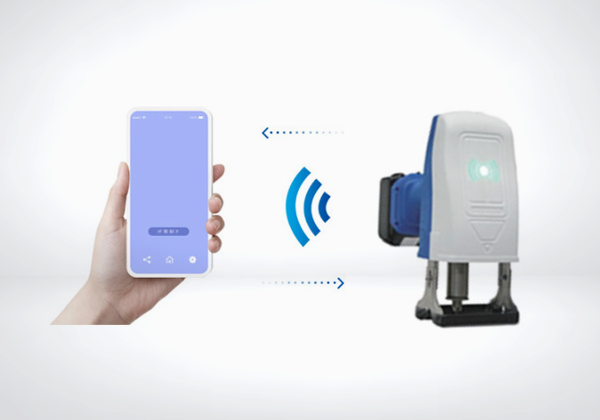

Independence- App connection without any controller - Marking available without app connection after synchronizing marking file
- Lightweight, high-impact resistance nylon body - LM guide on both axes for uniform marking depth - Standard bag for the transport and storage - Durable electrical solenoid type
Low maintenance cost- Minimized maintenance cost without controller and keypad - Modular Electronic construction for easy and economical maintence
Software features
MNSBLauncher App available on PlayStore- Most simple user interface - Available for Android/iOS operation systems - Multilingual user interface in 22 different languages - Just creat design and transfer/Sync to machine. No need to keep the App connected to the machine - QR code, data matrix barcode marking available - Easy to mark DXF and PLT files for marking logos - Different marking setting for each block (Marking strength, font size, etc.)
Product specifications
| M-mark53 | M-mark155 | |
|---|---|---|
| Type | Battery-type Cordless portable Dot peen marking machine | |
| Size | 286x135x285mm | 320x236x339mm |
| Weight | 2.4kg | 3.2kg |
| Input method | Mobile app operation without controller (Android/iOS mobile and tablet PC) | |
| Marking area | 50x30mm | 150x50mm |
| Text size | 1 ~ 29mm | 1 ~ 49mm |
| Standard Package | Equipment Machine, 2 batteries, Carry case | |
| Accessories | Front fixtures, Combo attachment, Tablet controller, etc. | |
Accessory options
| Photo | Product | Application | ||
|---|---|---|---|---|
|
carry case | Storage movement of machines | View | Inquiry |
|
Front Fixture with V-groove & magnetic | flat plate, pipe | View | Inquiry |
|
Front Fixture with V-groove | flat plate, pipe | View | Inquiry |
|
Independent Resting Legs | interfering material | View | Inquiry |
|
I type Support Guide | interfering material | View | Inquiry |
|
Flange marking guide jig | Flange | View | Inquiry |
|
Valve front guide | small valve | View | Inquiry |
|
EDGE STAND JIG | corner punch | View | Inquiry |
|
Tablet Controllers | Machine controller | View | Inquiry |
|
combo attachment | Nameplate and Small Parts | View | Inquiry |
