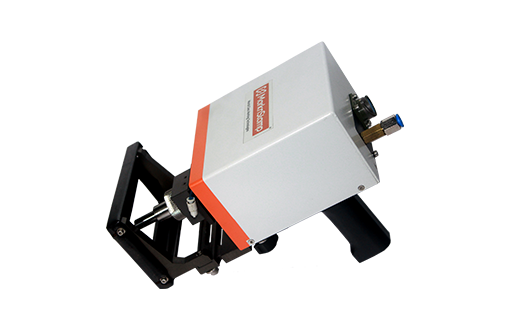

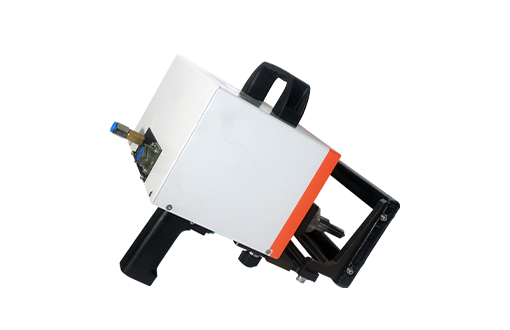

Handy SPR
Pneumatic SPR Portable markingFast marking speed for large marking quantity
Features
Touchscreen Controller- CN03 touchscreen input through external controller

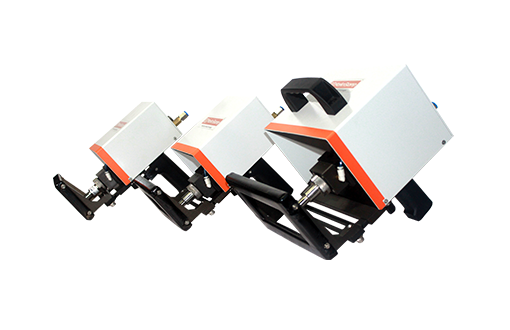

Maximum 150x50mm marking area- Available in 3size(50x30,80x30,150x50mm)
Fast marking speed- Air type marking and fast marking speed

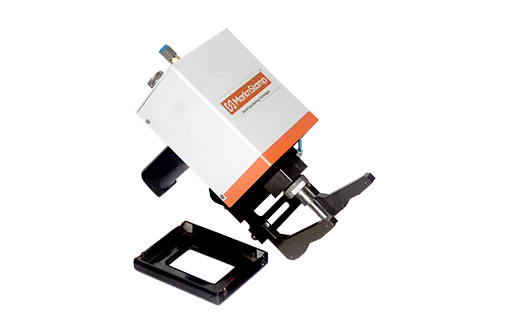

- Special front fixture to be fixed on the marking material surface (magnetic guide option)
Optional controller connecting cable- Connecting cables available in multiple lengths to suit application location

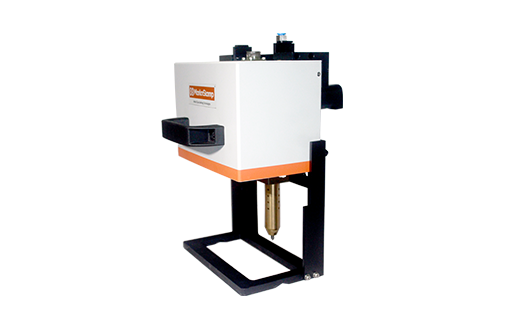

Attachment Option- Combo column frame available in multiple lengths to suit application location
Deep marking- Deep marking available to use deep marking tool (HF20)
Machine specifications
| SPR53 | SPR83 | SPR155 | |
|---|---|---|---|
| Type | Pneumatic portable dot peen marking machine | ||
| Marking area | 50x30mm | 80x30mm | 150x50mm |
| Size | 114.5x262x206mm | 144.5x260x206mm | 214.5x262.5x246.5mm |
| Weight | 2.5kg | 3.2kg | 4kg |
| Controller | CN03 touchscreen controller | ||
| Connection cable | Standard cable 6m | ||
| Air pressure | 4 ~ 6Bar | ||
| Standard marking tool | LP10 Dot Pin Stylus | ||
Accessory

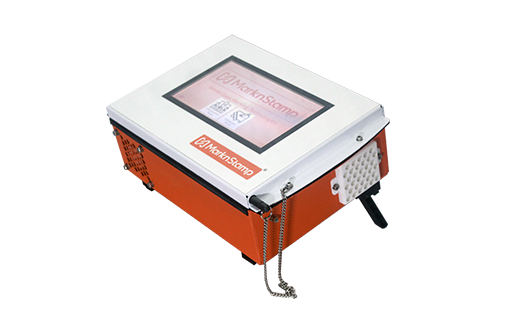

CN03 / CN07 touch-type controller
Features
- Strong Steel construction - 7” Resistive touch screen for industrial use - Mount controller as table top, wall mounted or Panel mounted - Simple to use and understand user interface - Multilingual user interface in 22 languages - Powerful feature of Jog to accurately position tool - Mark alphanumeric text, number, DXF or PLT logos, Datamatrix or QR code - Various fonts use - RS232 port for ASCII & Modbus RTU over RS485 for PLC or SCADA communication - Used for EtherCAT/ProfiNET or similar communications using suitable converters Type Pneumatic controller touch type
| CN03 / CN07 | ||
|---|---|---|
| Type | Pneumatic controller touch type | |
| Size | 185x285x112.5mm | |
| Weight | 3kg | |
| Connection cable | Standard cable 6m | |
| Language | 22 languages including Korean | |
| Power | 110 - 240V AC | |
| Communication | RS232 & 485 IO, USB | |
