    Dot peen> Desktop Dot peen marking machine > Simple Marker

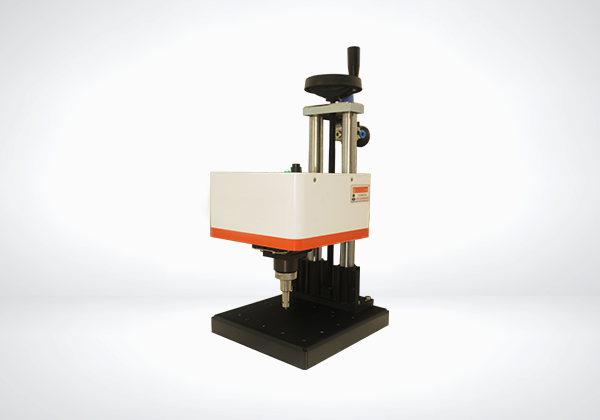

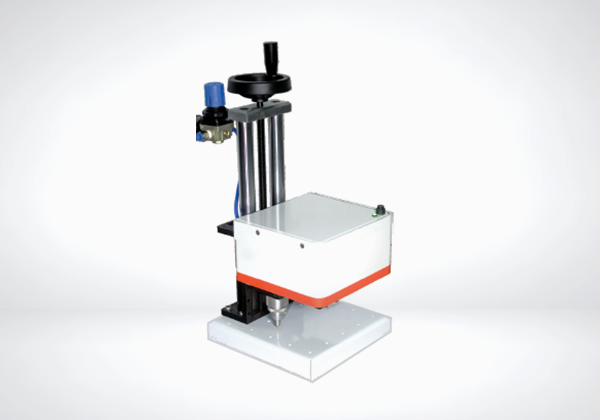

    Simple marker

    Low-cost simple marking machine

    Affordable air-type dot peen marking machine suitable for small-quantity name plate and part marking

    Quotation Inquiry Catalog
    Features

    - Small air-type table top marking machine for great space efficiency
    - 100x70mm marking area to cover most of marking applications
    - Standard holding stand of 150mm height

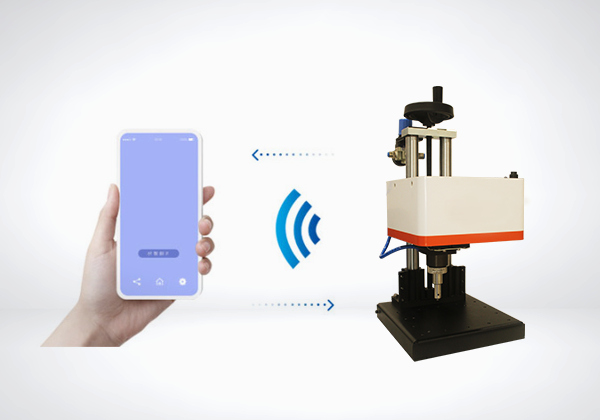

    - Communication over Wi-Fi hotspot of machine. No other Wi-Fi network required.

    - Use standard Mobile or Tablet or Laptop for operation
    - Simple to use with one button for all operations
    - Use a standard 19V 1.8A adapter for power
    - Multi color LED to indicate machine status

    Software features
    MNSBLauncher App available on PlayStore

    - Most simple user interface
    - Available for Android/iOS operation systems
    - Multilingual user interface in 22 different languages
    - Just creat design and transfer/Sync to machine. No need to keep the App connected to the machine
    - QR code, data matrix barcode marking available
    - Easy to mark DXF and PLT files for marking logos
    - Different marking setting for each block (Marking strength, font size, etc.)

    specifications
    Simple Marker
    Type Pneumatic small table top peen marking machine
    Marking area 100x70mm
    Size 286x200x465mm
    Weight 10kg
    Controller App connection with Wi-Fi Hotspot, (Android/iOS/Windows)
    Column height 150mm~120mm(depending on the marking tool)
    Operating Environment Marking 100 quantity or below per day
    Power 19.5V 3.3A adaptor
    Marking tool LP10 or PH16
