    Dot peen> Integration Dot peen marking machine > SIA Series

    SIA Series

    Dot peen marking machine for Integration

    Compact marking head and controller and simple communication connection for Integration

    Quotation Inquiry Catalog

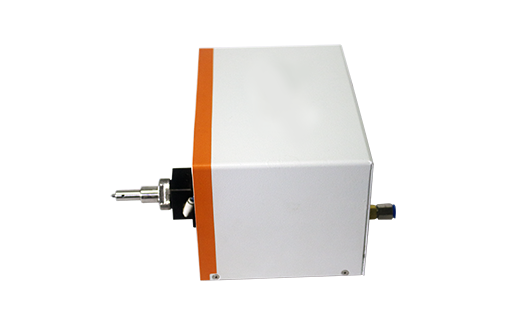

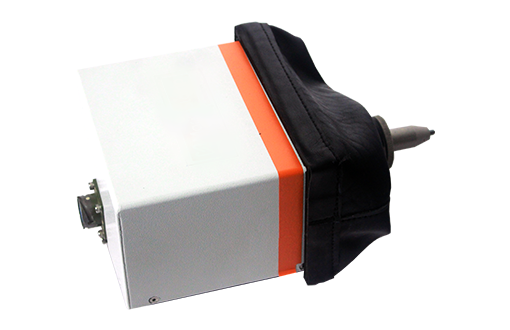

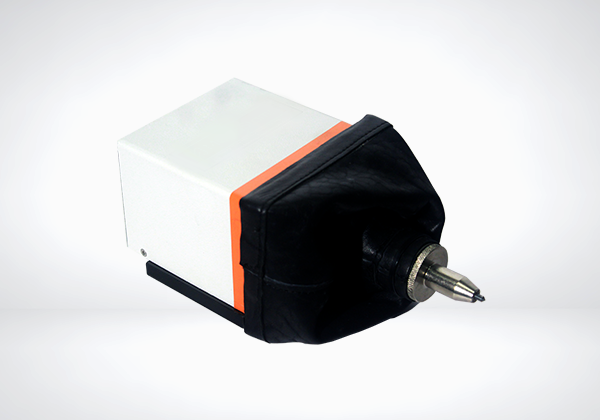

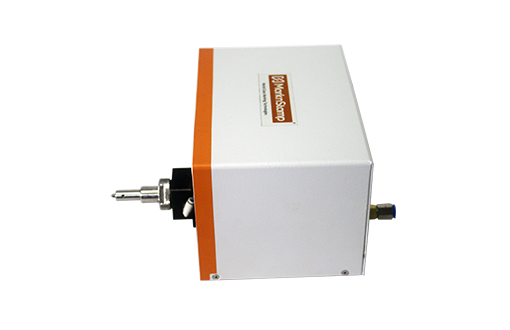

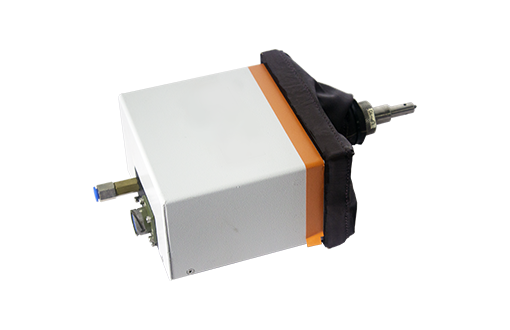

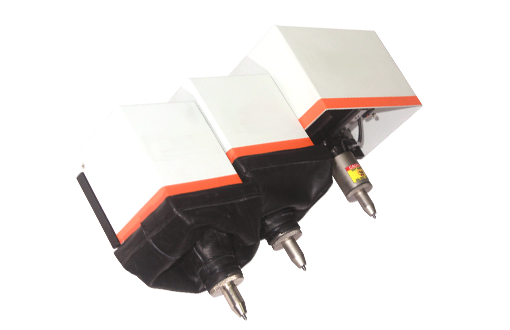

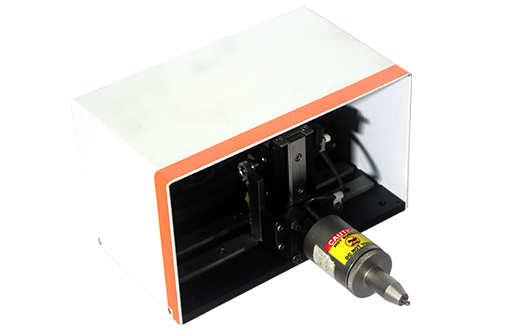

    Marking head

    - Compact marking heads for easy placement and approach on automation device
    - Rexin Bellows for protection form dust and ingress
    - Marking area available up to maximum 150x50mm
    - Rugged Aluminum construction to suit industrial environments
    - Connecting cables available in multiple lengths to suit application location
    - Use optional holding stands for table top workin

    specifications
    SIA53 SIA83 SIA155
    Type Pneumatic Integration marking machine
    Marking area 50x30mm 80x30mm 150x50mm
    Size 114.5x270x99mm 145x270x99mm 214.5x270x139mm
    Weight 2.3kg 3.3kg 4.3kg

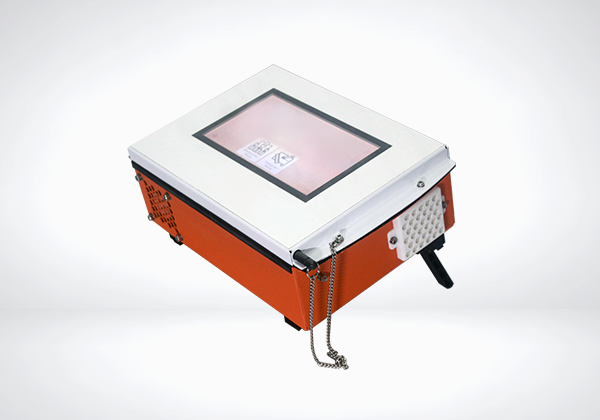

    CN03 / CN07 touch-type controller
    Features

    - Strong Steel construction
    - 7” Resistive touch screen for industrial use
    - Mount controller as table top, wall mounted or Panel mounted
    - Simple to use and understand user interface
    - Multilingual user interface in 22 languages
    - Powerful feature of Jog to accurately position tool
    - Mark alphanumeric text, number, DXF or PLT logos, Datamatrix or QR code
    - Various fonts use
    - RS232 port for ASCII & Modbus RTU over RS485 for PLC or SCADA communication
    - Used for EtherCAT/ProfiNET or similar communications using suitable converters

    CN03 / CN07
    Type Pneumatic controller touch type
    Size 185x285x112.5mm
    Weight 3kg
    Connection cable Standard cable 6m
    Language 22 languages including Korean
    Power 110 - 240V AC
    Communication RS232 & 485 IO, USB
