    Dot peen> Integration Dot peen marking machine > XF510

    XF510pㆍXF510r

    Integration Dot peen marking machine

    XF510p
    XF510p Pneumatic peen marking machine of X-tra fast, X-tra small is right solution for a fast-paced production environment.

    XF510r
    Scribing type low-noise marking machine suitable for chassis, pipe, vehicle exhaustion parts production enviroment. Independent use available through PLC, PC connection

    Quotation Inquiry Catalog

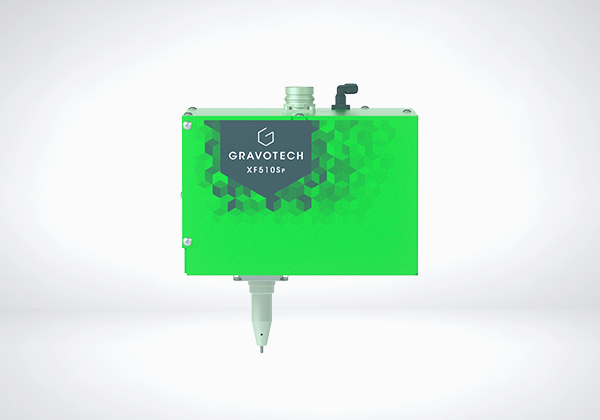

    XF510p pneumatic marker

    - Rotating, fixed installation available for integration
    - Various data marking available such as serial number, barcode, logo, etc.
    - Marking file preview, simulation function
    - Fast marking speed of maximum 10 characters per a second
    - High marking quality and durability
    - Over 1000 marking files can be saved
    - Over 30 years of proven marking technology of Technifor

    specifications
    XF510Cp XF510Sp XF510Dp
    Type Pneumatic equipment marker
    Marking area 50x20mm 100x80mm 200x80mm
    Size 136.4x86.7x113.7mm 219x237x146mm 319x237x146mm
    Weight 2.35kg 7.8kg 9.7kg
    Controller UC500
    Connection cable 3m, 6m, 10m, 15m
    Language support Over 20 languages including Korean
    Power 100-240V AC
    Communication RS232, USB, ethernet, IO
    Accessories Protective shutters, booth, Rotary device, 90° elbow connector, etc.
    XF510r Scribing marking machine

    - Low-noise marking available for hollow pipe or metal sheet
    - Better marking quality than regular marking method, so it can be used in final product
    - Communication interface: Marking start, Cycle completed, Cycle stop, machine ready, Marking in progress
    - Deep marking : before or after treatment(painting, sandblasting, short-blasting)

    specifications
    XF510Cr XF510Sr XF510Dr
    Type Pneumatic scribing marking machine
    Marking area 40x50mm 80x50mm 160x50mm
    Size 182x167x199.5mm 222x167x199.5mm 302x167x199.5mm
    Weight 18kg 20kg 4.3kg
    Controller UC500
    Connection cable 3m, 6m, 10m, 15m
    Language support Over 20 languages including Korean
    Power 90-230VAC
    Communication RS232, USB, ethernet, IO
    Accessories Protective shutters, booth, Rotary device, 90° elbow connector, etc.

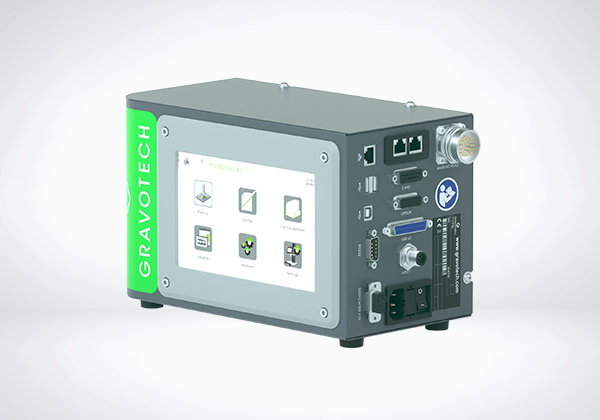

    Controller features

    - Standard equipment: RS232, USB, ethernet connection and I/O
    - Multilingual keyboard and multilingual support
    - Communication interface: Marking start, Cycle completed,Cycle stop, Machine ready, Marking in progress
    - Intuitive icons and pop-up help
    - Multilingual user interface in 22 languages
    - Easy program input: Text, variable data, shape, 2D barcode, etc
