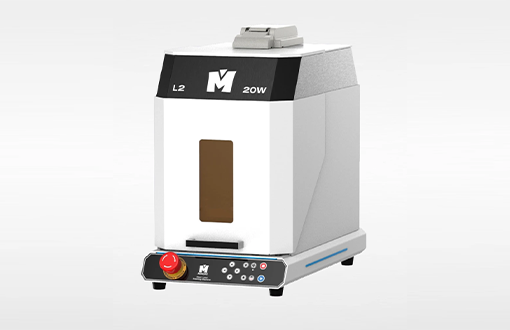

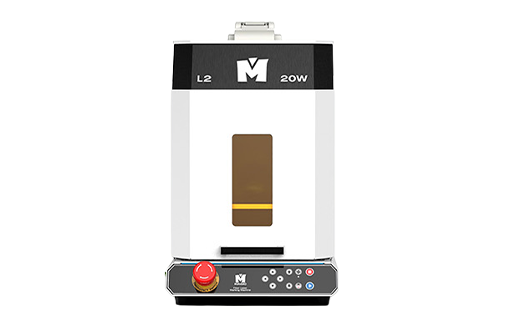

Compact Fiber Laser Marking MachineIt is a laser marking machine developed to enable safe, convenient, and fast operation of jewelry-specific marking tasks that are delicate, complex, and diverse in shape, and can be used not only in jewelry factory workshops but also in general industrial marking machines.
Features
Blended tool passes such as black/white marking and deep marking for complex shapes Collective marking with composite tool pass by reflecting laser options of various characteristics in each tool pass Automatic multi-stage focusing marking that auto-focus on different marking surfaces of different heights Curved material marking High-speed rotary marking with built-in marking function

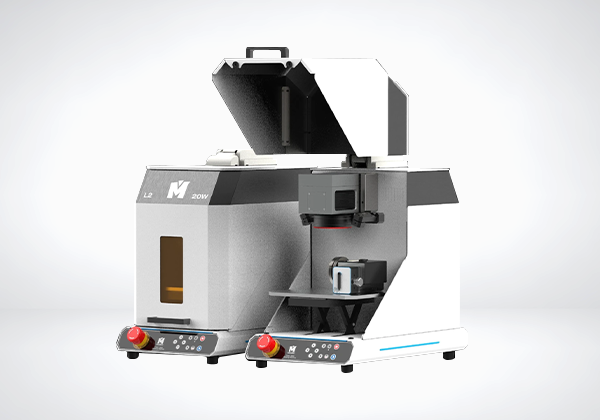

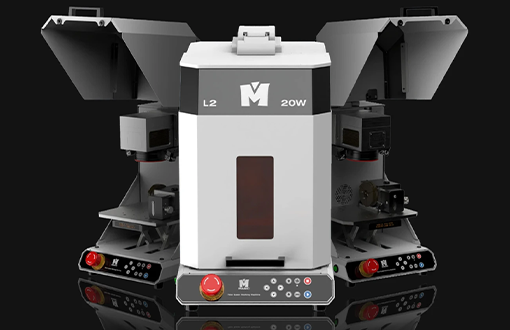

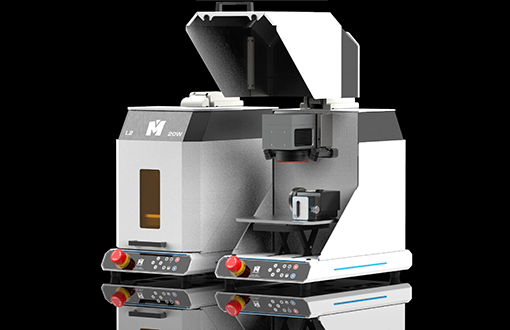

Easy removal of rotary clamp via push-pull connector Plate height automatic control shaft built in Built-in dust collector automatic on/off function Built-in status indicators for quick and easy verification of instrument health Built-in soft hinges that operate the safety door smoothly with less force Upside-open safety doors provide plenty of room to operate the device.

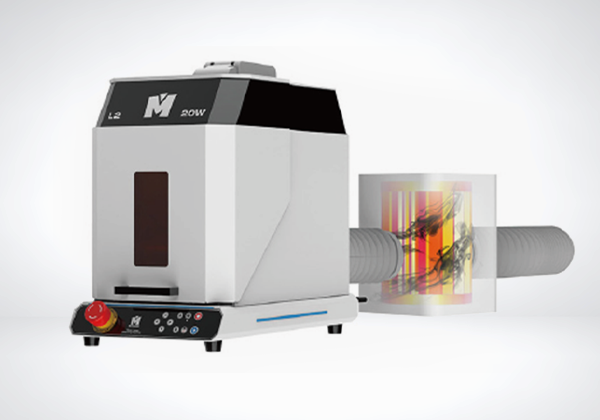

A safe device that blocks the emission of laser light below the level specified in Class 1 or below Chamber-type structure that blocks the risk of external scattering of dust and nonvisible laser light. Automatic dust collector controls to prevent dust from scattering due to a user's mistake. Check the operation status of the device without goggles. Double safety sensor is built-in to protect the user from the danger of laser malfunction.
specification
| Laser safety rating | Class 1 Laser Product | laser source type | Ytterbium Doped Fiber Laser |
|---|---|---|---|
| Focus distance | 130mm | Average output | 20W |
| Size | 304mm(W) x 500mm(H) x 554mm(D) | M² | <1.5 |
| Marking Area Size | 85mm x 85mm | pulse energy | 0.8mJ |
| Material Maximum Height | 62mm | pulse repeat rate per second | 25~600KHz |
| Z-axis administration | 62mm | pulse width | 200ns |
| Safety door opening height | 751mm (based on floor) | Speed | 4000mm/s |
| Max. Weight of marking material | 4kg | a wavelength | 1064nm |
| Weight | 36kg | beam diameter | 7.0±0.5mm |
| Voltage | 100V~240V, 50Hz/60Hz | Variable output range | 0~100% |
| Power consumption | 240W | Coolring System | a cold food |
| Cooling system | air-cooled | a polarization | random |
| Temperature of use | 0~40° | Station reflective light protection | embedded |
| Humidity in use | 10~85% | guidelines | embedded |
| laser safety rating | 4-class laser products |
Accessories
Application
pendant clamp (center fix type)
1. Easy to fix pendant or object (workpiece) 2. It is also convenient to fix the organic shape using pins 3. Easy and convenient fixing using the handle 4. The upper and lower parts move at the same time, and it is easy to fix the center 5. Material can be secured more strongly 6. Easy attachment and detachment of clamps
Pendant clamp
1. Easy to fix pendant or object (workpiece) 2. It is also convenient to fix the organic shape using pins 3. Y-axis movement can be fixed 4. After fixing the upper or lower part, it is advantageous for repeating the same shape by loosening and tightening only one side 5. Glass for object marking due to low clamp height 6. Easy attachment and detachment of clamps
Ring clamp
Ring clamp used by the Engrazer. It's an L-type simple clamp that just needs to be placed on the ring. If the rotary clamp is tightened and fixed according to the ring size The ring clamp does not need to be secured. It's much simpler to fix. The imprinting range of the L-shaped plamp is approximately 10 MM.
Rotary clamp [for L2]

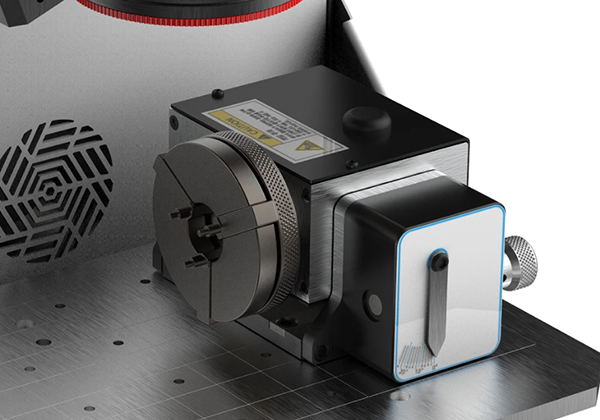

L2 rotary clamp. The rotary clamp can be rotated 360 degrees, You can easily mark various designs. This clamp complements the difficulty of imprinting in the L-shaped clamp provided as a standard. If the imprinting range of the L-shaped flap was about 10MM, The rotary clamp can be marked without restriction of the imprinting range.
