    YK Series

    Automated Facility Laser Marking machine

    It is a laser marking machine for automation that is divided into three types of laser sources: fiber laser/co2 laser UV laser, and can be applied to various types of production line processes.

    Quotation Inquiry Catalog
    Features
    High-precision performance for excellent reliability

    - Compact mechanical design for easy integration in narrow environments
    - Air-cooled lasers ensure reliable uptime
    - Minimize maintenance costs
    - High line integration with flexible configurations

    Permanently Available

    - Self-developed software ensures reliable performance without errors
    - Fine mechanical parts without defects

    Maximized Efficiency

    - Line speed up to 12000 mm/s
    - Standards and custom protocols
    - High-performance self-developed smart chipset provides high-capacity data and Process complex graphs quickly

    an easy way to use

    - Built-in Smart Touch Screen Panel
    - Support for multiple languages
    - Convenient and easy operation

    specification
    version YK630 YK632 YK633 YK660

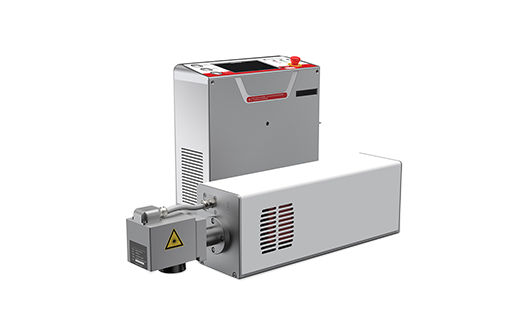

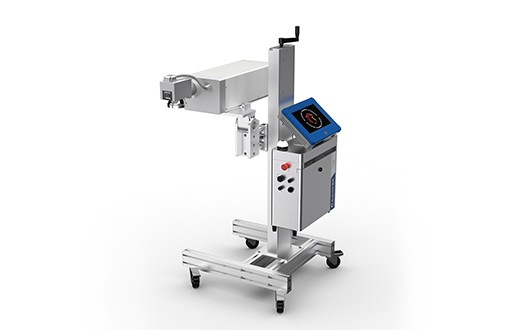

    Laser type RF Type CO2 Laser
    Output power ≥30w ≥60w
    Laser wavelength 10.6㎛ 10.2㎛ 9.3㎛ 10.6㎛
    How to Display High precision two-dimensional scan
    Line speed ≤7000mm/s
    Control system 7-inch touchscreen (embedded) & 10-inch remote controller application options / Operating system: WINCE
    a cooling system Air Cooling
    Reflector size Standard 10mm
    Marking Range Standard 90×90 mm / Maximum 450×450 mm
    Positioning method Adjust beam guide positioning auto-focus
    Marking Speed 0~189m/min (depending on material and marking content)
    Font/File Format Korean, English, Chinese, Spanish, Russian Arabic, etc. / BMP, DXF, HPGL, JPEG, PLT
    Barcode/QR Code CODE39 / CODE128 / CODE126 / QR code / Z code / DM code / Visual code, etc.
    Interface RS-232C/USB2.0/Ethernet, I/O
    version YK720 YK730 YK750

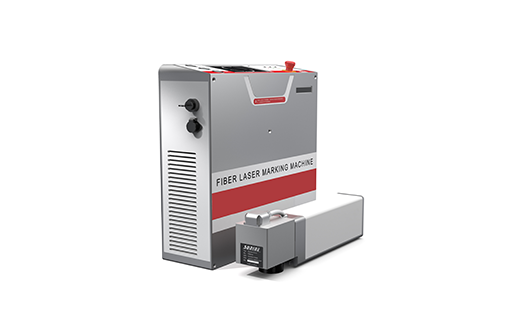

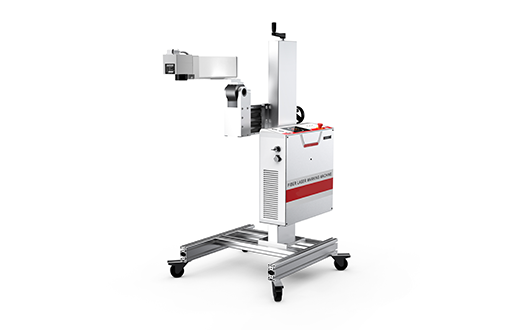

    Laser type Fiber Laser Source
    Output power ≥20w ≥30w ≥50w
    Laser wavelength 1064nm
    How to Display High precision two-dimensional scan
    Line speed ≤7000mm/s
    Control system 7-inch touchscreen (embedded) & 10-inch remote controller application options / Operating system: WINCE
    a cooling system Air Cooling
    Reflector size Standard 8.5mm
    Marking Range Standard 110x110mm
    Positioning method Adjust beam guide positioning auto-focus
    Marking Speed 0~189m/min (depending on material and marking)
    Font/File Format Korean, English, Chinese, Spanish, Russian Arabic, etc. / BMP, DXF, HPGL, JPEG, PLT
    Barcode/QR Code CODE39 / CODE128 / CODE126 / QR code / Z code / DM code / Visual code, etc.
    Interface RS-232C/USB2.0/Ethernet, I/O
    version YK903F YK905F

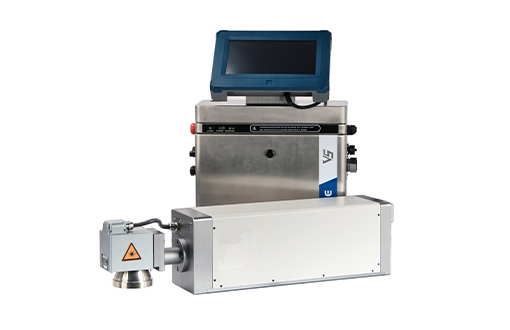

    Laser type UV laser source
    Output power ≥3w ≥5w
    Laser wavelength 355nm
    How to Display High precision two-dimensional scan
    Line speed ≤7000mm/s
    Control system 7-inch touchscreen (embedded) & 10-inch remote controller application options / Operating system: WINCE
    a cooling system Air Cooling
    Reflector size Standard 8.5mm
    Marking Range Standard 110x110mm
    Positioning method Adjust beam guide positioning auto-focus
    Marking Speed 0~300m/min (depending on material and marking)
    Font/File Format Korean, English, Chinese, Spanish, Russian Arabic, etc. / BMP, DXF, HPGL, JPEG, PLT
    Barcode/QR Code CODE39 / CODE128 / CODE126 / QR code / Z code / DM code / Visual code, etc.
    Interface RS-232C/USB2.0/Ethernet, I/O
