F Series

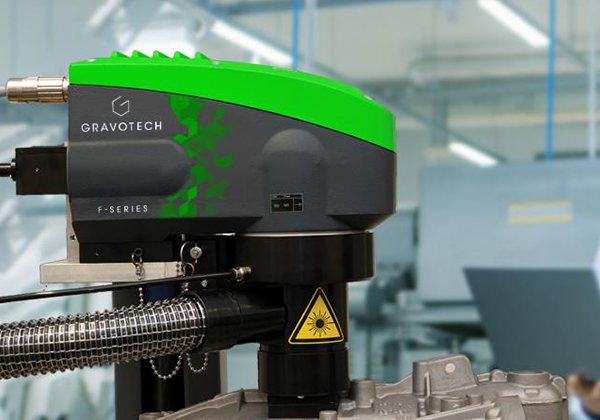

Complete range of integrable laser marking systemCompact and robust Technifor laser F20 are fully PPC (Program-to-program communication) compatible to easily integrate marking requirements in your production process.
Features

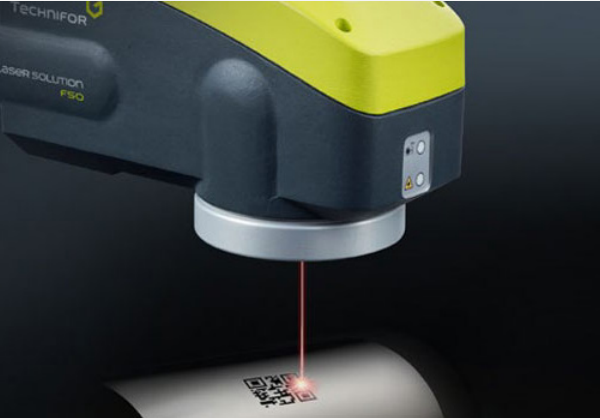

Over 20 years of Technifor’s fiber technology- Reliability: Sturdy machine, low maintenance cost, high safety and convenience - High marking quality and high speed: High-speed marking solution that marks repeatedly through short cycle time using high-quality laser beam - Safety: Internal safety shutter protects operator’s safety. Electronic control and alarm for equipment protection - Ready to integrate solution: Machine specifications (compact head) specialized for production line, integration control devices such as PC and PLC and high compatible interface can reduce installation/programming time and cost.

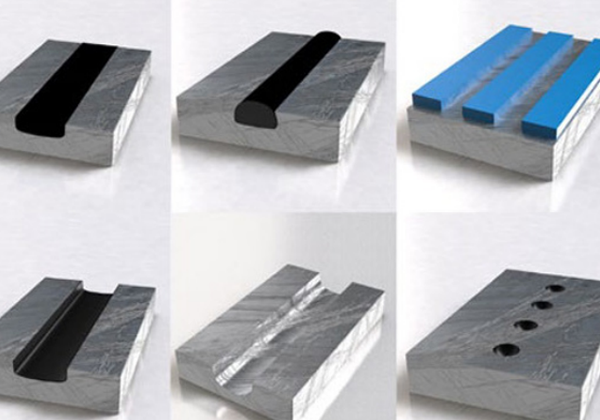

Technifor can support your developing requirements by easily updating the power of your marking machine without having to change the complete system. Highly flexible, Fibre Laser Solution enables any type of part processing (fragile,soft, hard sufaces, coating removal)
- F10 : Economic solution, surface marking (plastics, SUS, aluminum, metal, etc.) - F20 : Versatile, high-performance solution, high speed, high-quality marking (aluminum, steel, titanium, metal, cast iron, etc.) - F30, F50 : Powerful solution for the most demanding applications in terms of speed and depth of marking. Ideal for engraving
specification
| F10 | F20 | F30 | F50 | |
|---|---|---|---|---|
| Output | 10W | 20W | 30W | 50W |
| a frequency band | 20Khz ~ 100Khz | 30Khz ~ 100Khz | 50Khz ~ 100Khz | |
| Wavelength | 1064nm | |||
| Safety grade | Class4 | |||
| Power | 100 ~ 240 VAC / 50~60HZ | |||
| Power consumption | 400W(700W Max) | |||
| Marking Specifications | ||
|---|---|---|
| Marking speed | 4,000mm/s | |
| Marking precision | 10µm | |
| Repeated marking error | 2µm | |
| Beam Spot Size | 100µm | |
| IP Level | Head | IP-54 |
| Controller | IP20 | |
| Interface Specifications | ||
|---|---|---|
| Interface | 이더넷, Profinet, 8I/8O, Dedicated I/O(SUB D37), RS232, USB(x3) | |
| Laser trace software OS | Windows XP, Windows Vista, Windows 7&8, Windows10 | |
| Repeated marking error | 2µm | |
| Marking type | font | Technipo Original Font (17 basic types + optional + customized) |
| Barcode | Code39 / Code128 / Code93 / Code11 / Codabar / EAN13 / EANB | |
| 2D code | DataMatrix ECC200 / QRcode /Micro QRcode / UID | |
| Logo image | Possible file types : BMP, DXF, EPS, IGES, JPEG, PNG, TIFF 등 | |
| Mechanical specifications | ||
|---|---|---|
| Fiber Cable Length | 3m | |
| Weight | Head | 8.3kg |
| Controller | 16.6kg | |
| Setting marking head orientation | All directions available | |

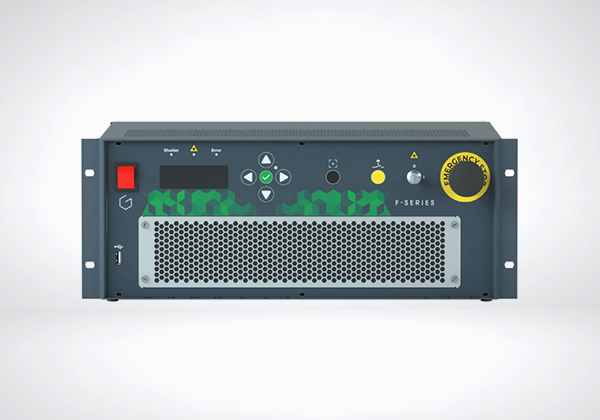

UC controller features
- Can be used independently in the production line without PC - Simple, user-friendly programming for easy installation and use - Controller protection through dust filter - Easy installation on industrial panel 19“ rack - Dedicated Input/Outputs to manage the machine and automate operations - Multiple port to communication interface: RS232, USB, DB15-F, ethernet,TCP/IP, Profinet (optional) - Ready-to-use solution: Interface for immediate dignostic, easy update via USB,Ethernet for remote control operation
